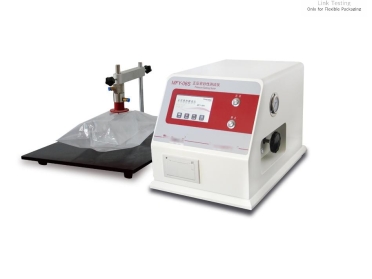

Intelligent Sealing Instrument MFY-06S

Intelligent Sealing Instrument MFY-06S

It is applicable to the determination of sealing and breaking strength of various materials such as anti-theft bottle cap, infusion set, catheter, composite hose, packaging bag, composite cylinder, medical equipment and sterile packaging bag.

Anti theft bottle cap Composite tube packaging bag

  • The material of high transparent plexiglass vacuum chamber is firm and durable.
  • Touch screen display, microcomputer control, human-computer interface, convenient and fast
  • The instrument can automatically store data, which is convenient for users to query.
  • Equipped with micro printer to print experimental results quickly
  • Independent operation button, alternating operation with touch screen, gives you more operation experience.
  • The pressure gauge clearly shows the pressure value
  • The pressure regulating valve can control and stabilize the air source pressure, so that the operator can adjust the pressure according to the experimental requirements
  • The speed control knob can adjust the air flow speed and inhibit overcharge

One instrument has multiple test modes

Pressure maintaining test, bursting test, anti-theft bottle cap, coarse leakage, rapid leakage, end cap separation, sealing test, internal pressure resistance test, creep test, sectional mode

INSTRUMENT SPECIFICATIONS

measuring range0~1.25MPa
measurement accuracy±1%
air connectionФ8mmPolyurethane tube
Machine size480mm×330×150mm
Weight18KG
Gas pressure0.4 MPa~1.3MPa
Working power220V 50HZ

Standards

GB10440、GB18454、GB19741、GB8368、YYT0681、YY0285、ASTM F1140、ASTM F2054、ISO 11607-1 、 ISO 11607-2 、 GB/T 19633 、 GB/T 17876 、 BB/T 0025 、 QB/T 1871 、 YBB

00252005-2015、YBB 00162002-2015

Instrument configuration

Standard:Mainframe, plastic anti-theft bottle cap sealing performance test device, sealing barrel, micro printer Optional: Test accessories (restraint plate test device, open package test device, thick leakage test device, test stand, hose sealing performance test device, end cover release force device, quick leakage device, etc.)

Open Pouch Clamp
