Steel Ball Impact Tester   LTGQ-60

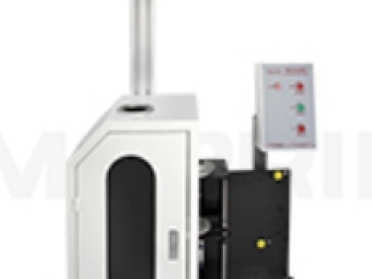

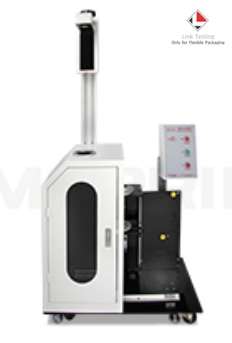

Steel Ball Impact Tester LTGQ-60

LTGQ-60

The steel ball impact tester is designed and manufactured according to the standard of , and is suitable for testing the impact resistance of bottle caps at different angles at a given height.

Operation Video

Technical features

★Pneumatic clamping and release of the specimens for faster and accurate test operations
★The steel ball is electromagnetically attracted and released automatically, effectively avoiding system errors caused by human factors
★Protective device makes the test process safer
★Center positioning device, reliable test results
★Different test angles can be adjusted at will to meet different tests

Specification

Specification Data
Height762mm
Ball weight286g
Ball Diameter41mm
ClampPneumatic
Test Angle0-90°
Dimension750 mm (L) × 350mm (W) × 1400 mm (H)
Weight65Kg
Test Condition
Temperature15℃-50℃
Humidity80% at most

Standards

GB/T 17876

Standard Configuration

Host, steel ball, positioning device
