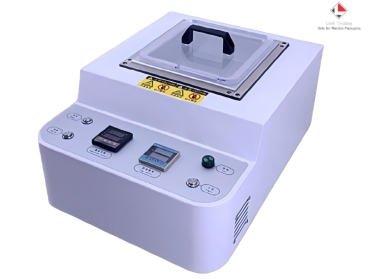

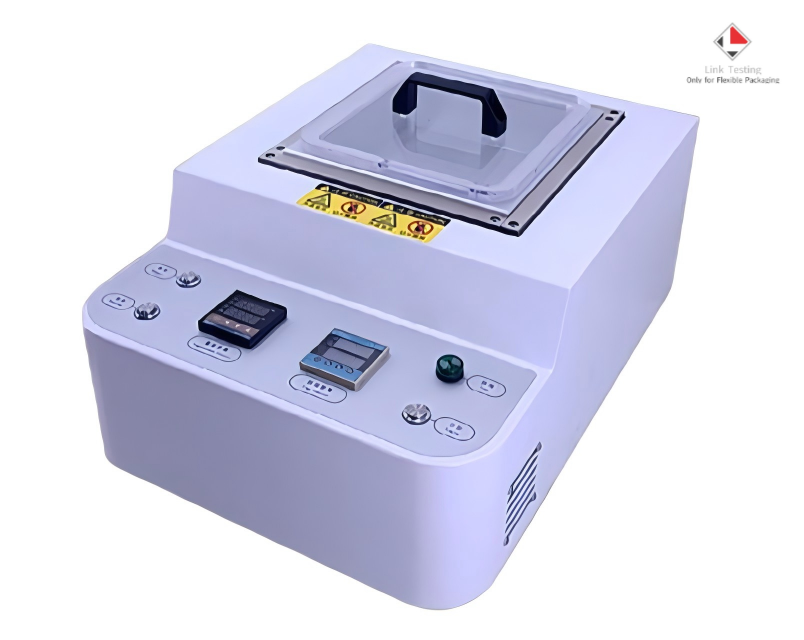

Thermal shrinkage tester LTRSY-03 is professionally applicable to the determination of heat shrinking performance of various film, composite film packaging, coated paper and other heat shrinkable materials.

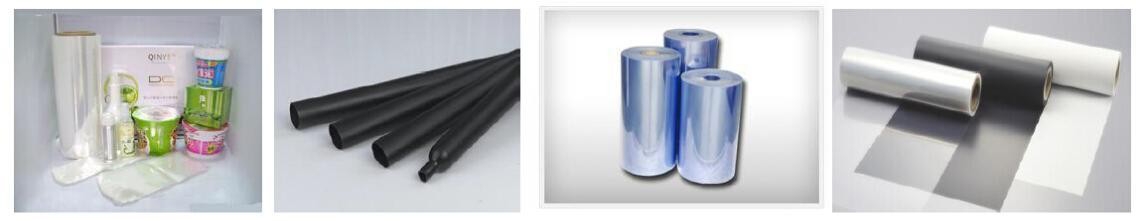

Shrinkage tester is for PVC Films, PE Films, POF Films, OPS Films, PET Films
Operation brief introduction video
★Heat shrinkage tester is controlled by micro-computer, PVC operation panel, and menu interface
★With the humanization design, have a simple and quick operation
★High precision circuit processing makes test accuracy and reliable
★The instrument is heated through nonvolatile fluid medium, widening the heating range
★Digital P.I.D. temperature control technology ensures the preset temperature
to be reached rapidly without any fluctuation
★Automatic timer function to efficiently guarantee the accuracy of test data
★Standard clamp wire mesh ensures temperature stability without interaction
★Have a compact structure, which can be transported easily

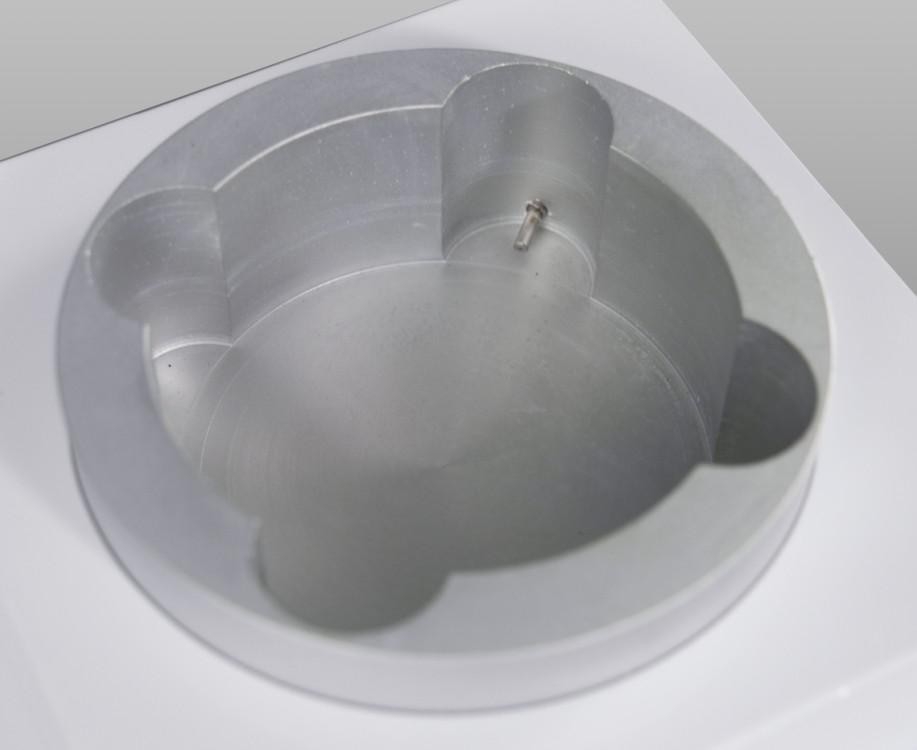

The temperature of thermal oil in the heating bath is controlled accurately. The specimen is cut by suitable size and put into the sink for some time.
Take out the sample according to the given time, let cool to temperature and measured. The thermal shrinking rate can be obtained.
| TECHNICAL SPECIFICATIONS | |
| Specimen Size | ≤140㎜×140㎜ |
| Temperature Range | Room Temperature -200℃ |
| Temperature Accuracy | ±0.3℃ |
| Heating Medium | Oil |
| Dimension | 360mm×440mm×320mm |
| Net Weight | 14kg |
| ENVIRONMENT REQUIREMENT | |
| Temperature | 23±2℃ |
| Relative Humidity | 50±5%RH |
| Power Supply | 220V 50Hz |
| CONFIGURATION | |
| Mainframe, Clamp Wire Meshes, Clamp Wire Mesh Support, Thermal Oil |
STANDARD: ASTM D2732,ISO 14616, DIN 53369
