The bottle is sealed with a cap after carbonated water solution is injected into the bottle in an automatic way, and the temperature and pressure in the bottle are measured.
Imported sensor system, high test precision, effectively ensure the accuracy of test results
The test results can be printed quickly with a micro printer
Automatic lifting of the sample table, the whole sample puncture and analysis process is fully automated
It can test the pressure and temperature at the same time, and effectively ensure the accuracy of the experimental process
The system program has the function of ISP online upgrade and can provide personalized service
Unique User Hierarchical Authority management function to ensure the integrity and standardization of data

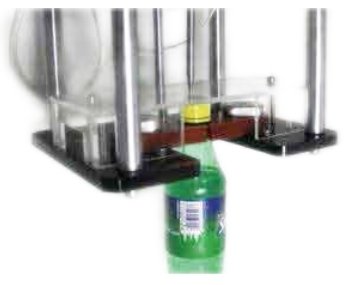

Self-piercing device

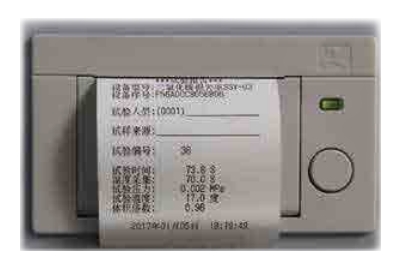

Micro Printer
Technical Parameters
Pressure range
0-1Mpa ; 0-145.2psi （Standard）
Resolution
0.01Mpa
Temperature Range
0-50℃
Sample Height
50-400mm
Dimension
375mm*460mm*700mm （L*W*H）
Weight
46KG
Relative Humidity
80%（at most）
Working Temperature
15—40℃
Standards：
GB/T 1868
Standard configuration:
mainframe, pressure test device, temperature test device, micro printer
