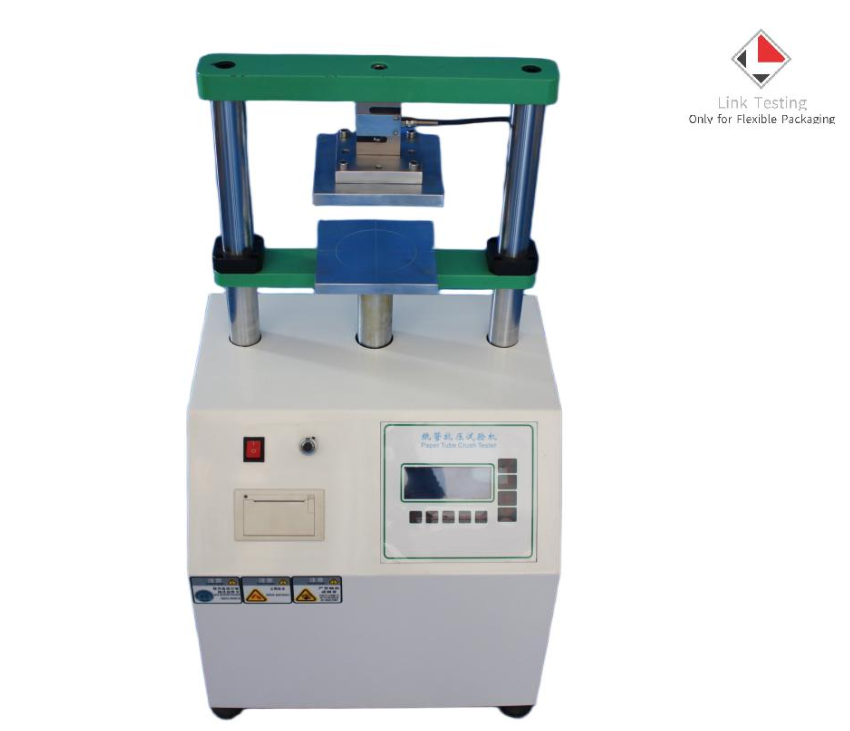

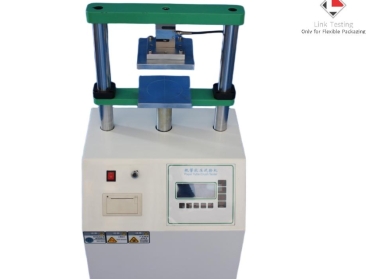

LTC-200 is suitable for paper tubes with an outer diameter of 200mm or less.

Offer, please feel free to contact the info@linktesting.org.

It is also known as the paper tube pressure resistance testing machine or paper tube compression testing machine, it is a basic instrument for testing the compressive performance of paper tubes. It is designed with high-precision sensors and high-speed processing chips to ensure the accuracy of sampling.

Features：
1. After the test is completed, it has an automatic return function, automatically determines the crushing force and automatically saves the test data.
2. Adjustable speed, full Chinese/English LCD display operation interface, and multiple units to choose from;
3. It is equipped with a micro printer, which can directly print the test results.

Standards:

BB/T 0032 Paper tube
ISO 11093-9 Determination of paper and board cores - Part 9: Determination of flat crush strength
GB/T 22906.9 Determination of paper core - Part 9: Determination of flat pressure strength
GB/T 27591-2011 Paper bowl

Technical parameters：

Force range：0-4900N
Tube outter diameter：200 mm
Test space：200*200
Test speed：10～150 mm/min
Force resolution：1/200000
Display resolution：1 N
Accurate：Better than grade 1
Displacement unit：mm、cm、in
Force unit：kgf、gf、N、kN、lbf
Stress unit：MPa、kPa、kgf/cm2、lbf/in2
Control mode：Microcomputer（can connect to the computer）
Display mode：LCD（can connect to the computer）
Language：Chinese/English
Shutdown mode ： Overload shutdown, automatic shutdown in case of specimen failure, and
automatic shutdown when upper and lower limit Settings are set
Safety device：Overload protection and limit element protection devices
Machine Power：AC VFD motor
Mechanical system：High-precision ball screw
Power：AC220V/50HZ~60HZ 4A
Weight：60 kg

Configuration:

Host; manual; power cable; calibration tool; software(optional)
