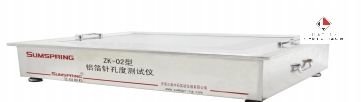

Specially designed for the test of the hole degree of aluminum foil
Testing Principle

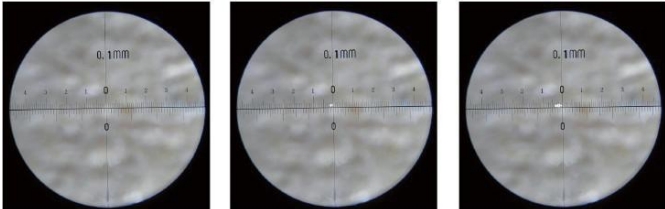

Under specified circumstances and light boxes,use the transmission of light of the aluminum foil,to observe the number of pinhole,and measuring the size of the pinhole
MicroscopeINSTRUMENT SPECIFIC ATIONS
| Observe Size | 400×250mm |
| application environment illumination | 20Lux-50Lux |
| Light source power | 30W |
| Enlarge scale value | 0.1mm |
| Objective magnification | 100X |
| Minimum measured value | 0.01mm |
| Dimension | 800×600×300mm |
| Net Weight | 20Kg |
Standard:
GBT 31 9 8 - 2 0 1 0 GBT 22 6 3 8 . 2 - 2 0 0 8 YBB 00 1 5 2 0 0 2 - 2 0 1 5
Configurations: main instrument ,microscope
