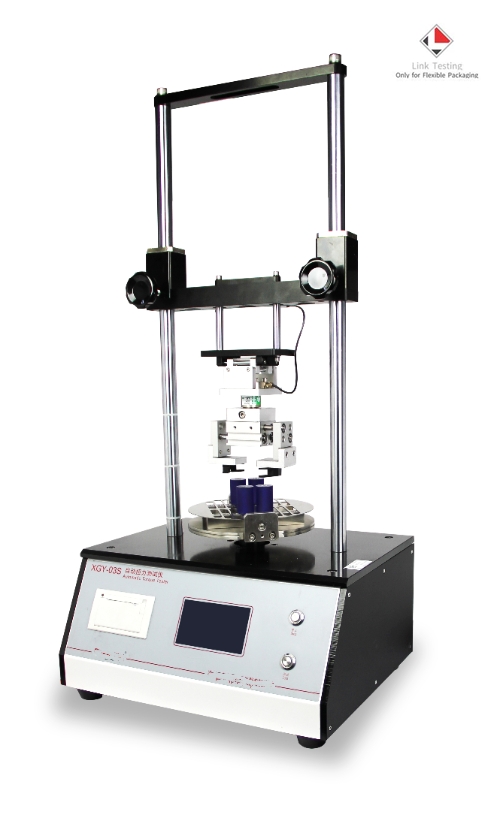

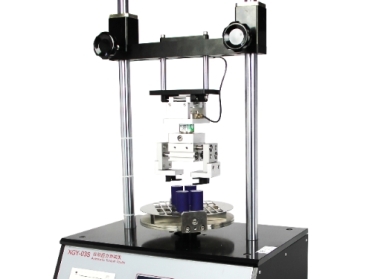

Auto Torque Tester LTXGY-03S applied to test a variety of bottle opening force and locking force. Different from the ordinary cap torque tester, this is automatic instrument. The entire testing process avoid test error by tighten or open the cap by people. Auto cap torque Tester LTXGY-
03S could set torque value, tighten automatically. The operator could placed the test sample in holding position. The instrument will complete the experiment in accordance with pre-set test program.This instrument is welcomed by research institutes , quality inspection institutions, medium and large enterprises.
★Microcomputer control, PVC menu-driven user interface
★Dual-mode design:Lock force and open force.Test bi-directional torque value automatically.
★Equipped with micro-printer, fast printing test results
★Auto-capping force tester could set to tighten or open torque force value. The bottle rotated by the instrument automatically.
★Large color LCD display test curves, user could monitoring progress.
★Specialized computer software to support multiple unit test results show that the testing proc ess graphic display,output and print functions
★Standard RS232 interface for easy connection of computers and LAN
| TECHNICAL SPECIFICATIONS | |
| Scale range | 10Nm |
| Test Accuracy | 1 FS |
| Resolution | 0.001Nm |
| Clamping range | Φ15mm～Φ170mm |
| Tighten Speed | 10r/min(Adjustable) |
| Data Storage | 1-80 |
| Dimension | 375mm×460mm×700mm |
| Net weight | 36kg |
| ENVIRONMENT REQUIREMENT | |
| Temperature | 15℃-30℃ |
| Relative Humidity | No more than 80%，no dewdrop |
| Power Supply | 220V,50Hz |
special torque meter for childproof cap was successfully upgraded
