Common Quality Problems and Solutions of Instant Noodle Packaging: Complete QC Guide

I. Instant Noodle Packaging Forms and Their QC Priorities

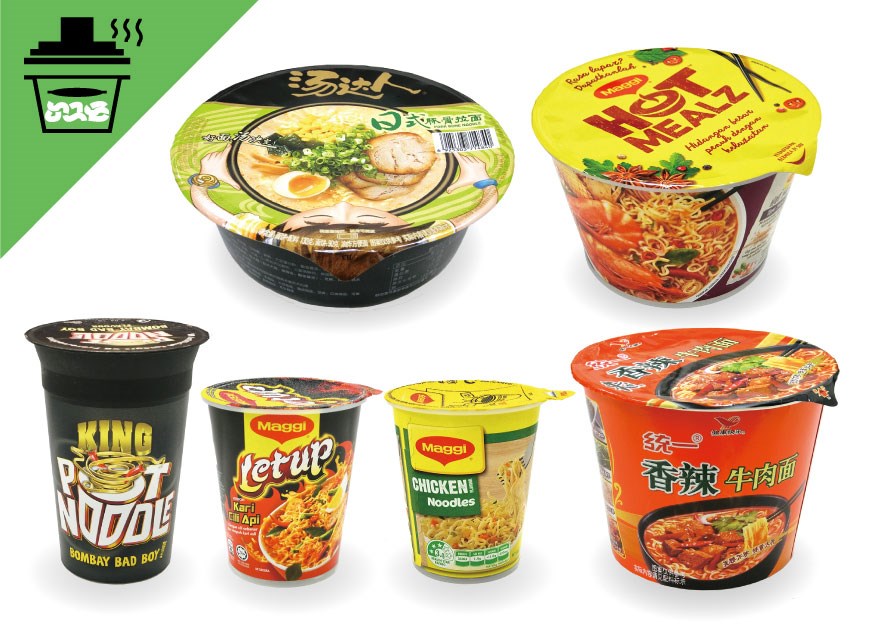

Instant noodles reach consumers in two dominant packaging forms, and each form has its own quality control priorities:

Because the bucket is exposed to hot water and grease during consumption, hygienic control of both the body and the lid film matters more than for bags — while for bags, barrier and heat-seal integrity dominate. For an in-depth treatment of seal integrity testing, see the GB/T 15171 sealing performance test guide.

II. Incoming Material Inspection Checklist

Before packaging materials enter your plant, three property groups should be verified:

Two notes on the barrier group: first, for aluminized films and foil laminates, always test OTR both before and after rubbing — a film that passes flat but fails after flexing will still let oxygen in once it has been folded in transit. Second, the COF test should distinguish inner and outer surfaces, because packaging lines fail on inner-to-roller friction, not on average slipperiness.

III. Six Common Quality Problems: Root Causes and Fixes

3.1 Package Leakage — Air and Powder Leaks

Symptom. Ready-to-brew noodle packages leak air or powder when squeezed, or after prolonged storage.

Root causes.

1. Material side: poor heat-sealability of the packaging material. Fine particles (soup powder, seasoning granules) stick to the heat-seal area during filling; seals contaminated this way lose strength and fail under external pressure or long storage.
2. Process side: incorrectly set heat-sealing parameters produce weak seals (under-sealing) or brittle, shrunken seals (over-sealing) — both leak.

Real lab case. A customer reported leakage in small sachets of black sesame paste packed in plastic composite film. Targeted testing found: in the negative-pressure seal test the finished bag leaked at the heat seal at −18 kPa; heat-seal strength of the empty bag was 18 N/15 mm, and of the finished package 19 N/15 mm — both breaking at the root of the seal, with visible seal shrinkage (over-sealing). Verdict: improper heat-sealing parameters, specifically over-sealing.

Fix. Monitor heat-seal strength of empty bags and finished bags, plus seal performance by the negative-pressure method, as routine indicators; choose materials that seal well even when contaminated by particles, droplets or powder (or increase the heat-seal layer thickness); adjust heat-seal temperature/pressure/time so the seal is neither under- nor over-sealed. The Heat Seal Tester LTH-H3 and Leak Tester LTY-01 cover these checks.

3.2 Rising Acid Value and Peroxide Value in Noodle Cakes

Symptom. Within shelf life, fried noodle cakes show acid value / peroxide value above limits — the signature of fat oxidation.

Root causes.

1. Poor oxygen barrier — a high OTR lets the cake sit in oxygen, oxidizing its fat. In one lab case, the packaging film of a customer's fried noodles measured an oxygen transmission rate of 1478.15 cm³/(m²·24h·0.1MPa) — far above good-quality products of the same class — and the finished package leaked at −68 kPa in the seal test.
2. Poor flex-crack resistance — creases and pinholes formed in transport degrade the barrier of aluminum-containing laminates.
3. Poor sealing — leaks at the seal or bag body accelerate oxidation.
4. Raw-material oil quality — repeatedly used or low-grade frying oil raises the baseline acid value of the cake itself.

Fix. Verify OTR (including after rubbing) and seal performance as incoming and routine controls; upgrade to high-barrier, flex-resistant laminates where the product demands it; and control frying-oil quality at the process side. Oxygen barrier verification is done with a Gas Permeability Tester.

3.3 Mold Growth and Crispness Loss — Moisture Barrier Failure

Noodle cakes are low-moisture products; once the package lets water vapor in, the cake softens and becomes a substrate for mold. The controlling index is the water vapor transmission rate (WVTR) of the bucket or film. Test methods include the cup method, electrolytic sensor method, infrared sensor method and humidity method; the electrolytic method per GB/T 21529 is the common choice for fast routine screening — the full procedure for buckets and cups is described in the moisture barrier test guide for instant noodle cups, and the LTWTC-303H WVTR tester is the reference instrument. For the oxygen side of the same problem, see the oxygen barrier monitoring scheme for paper cups.

3.4 Off-Odor — Solvent Residue and Plasticizer Migration

Symptom. The package smells of solvent, or the noodles acquire an off-taste.

Root causes. Excessive residual organic solvents from printing and lamination migrate into the noodles; phthalate plasticizers migrate from the material under heat and grease contact — a hygienic as much as an organoleptic problem, especially for buckets exposed to boiling water.

Fix. Include residual solvent and plasticizer content in the incoming inspection of films and bucket stock; require suppliers to provide batch certificates; escalate to lab verification when odor complaints cluster.

3.5 Film Slipping and Deviation on the Packaging Line

Symptom. Roll film slips, deviates or produces wrong-edge bags during unwinding and bag-making.

Root causes. A too-low or uneven coefficient of friction — typically between the inner surface of the film and the metal roller of the packaging machine; a rough or worn roller surface amplifies the deviation. This is a materials problem before it is an equipment problem.

Fix. Monitor COF by surface pair (inner-to-roller especially) at incoming inspection, and maintain the roller surface. The complete COF test method guide and the LTMXS-06 COF tester cover the measurement.

3.6 Bucket Deformation in Stacking and Transit

Paper-plastic buckets lose shape under stacking load if the body stock has insufficient compression resistance — a problem specific to the bucket format. Verify compression resistance of the bucket (empty and filled) at incoming inspection and after any change of board grade or forming process.

IV. Recommended Testing Instruments

V. Frequently Asked Questions

Q1: What is the most common cause of instant noodle package leakage?

Contaminated heat seals. Soup powder and seasoning granules landing on the seal area during filling reduce seal strength; the result is a bag that passes at the factory but leaks after handling or storage. Test heat-seal strength on both empty and filled bags to separate material problems from process problems.

Q2: Why does the acid value of noodle cakes rise even when the seal looks intact?

Oxygen transmission through the film itself. A visually perfect seal cannot compensate for a film with high OTR or one whose aluminum layer has cracked into pinholes after flexing — both let oxygen in continuously. That is why OTR should be tested before and after rubbing.

Q3: Which incoming tests are non-negotiable for instant noodle packaging?

At minimum: OTR and WVTR (barrier), heat-seal strength and seal performance (integrity), COF (runability), residual solvents (hygiene). Buckets add compression resistance.

Q4: How is the moisture barrier of a noodle bucket actually measured?

By cutting specimens from the bucket wall and measuring WVTR with an electrolytic-sensor tester per GB/T 21529 — the step-by-step procedure with typical parameters is in the moisture barrier test guide.

Q5: The packaging line keeps producing deviated bags — is that the machine or the film?

Check the film's COF first, especially inner-surface-to-metal-roller friction. If COF is low or uneven, the machine can only compensate so far; the material needs a slip-agent adjustment before mechanical tuning pays off.

VI. Related Guides

• GB/T 15171 Sealing Performance Test for Instant Noodle Packaging — the standard-based seal integrity method behind problem 3.1
• How to Test the Moisture Barrier Performance of Instant Noodle Cups — WVTR procedure for buckets and cups
• Oxygen Barrier Monitoring Scheme of Instant Noodle Paper Cups — the oxygen side of barrier control
• COF Test of Flexible Packaging Film: Complete Method Guide — friction testing behind line runability
