Soure: Link Testing Instruments Co.,Ltd.

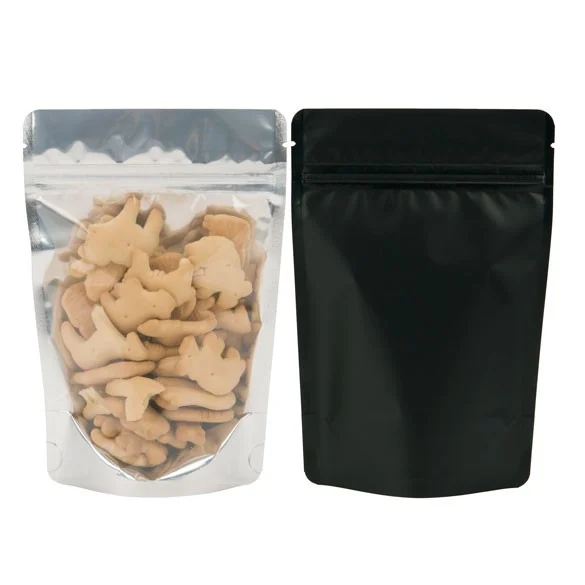

Zipper self-sealing bag is a bag that can be repeatedly sealed and opened. It is generally a three-side or four-side sealed bag, one of which is equipped with a zipper. The bag is opened and sealed by opening and closing the zipper. Because of its strong self-sealing effect, good airtightness, easy to carry, can be opened and sealed repeatedly, and can keep the items in the bag hygienic, it is widely used in the packaging of candies, preserved fruits, tea, seafood, medicines, medical equipment, clothing, accessories, small mechanical parts, toys and other products.
The opening performance of the zipper has an important influence on the use effect of the zipper self-sealing bag. The opening tension is an indicator for evaluating the opening performance of the zipper. If the ridges and grooves of the zipper are not tightly matched, the opening tension is small, which will lead to poor air tightness of the packaging, easy to leak, and even break the bag under the impact of falling or the impact of the product inside the package; if the opening force of the zipper is too large, it will cause the packaging bag to be difficult to open. In the process of opening the zipper, it is easy for the plastic film on both sides of the zipper to be stretched or even broken while the zipper is not opened, affecting the convenience of using the zipper self-sealing bag. Therefore, appropriate opening tension is one of the basic properties that ziplock bags should have.
This test was conducted in accordance with the relevant provisions of the opening tensile test in BB/T 0014-2011 Zipper Ziplock Bags, which is applicable to ziplock bags made of plastic single-layer film, composite film, etc. The test equipment used is the LTS-05 Automatic Tensile Tester, which is independently developed and produced by Link Testing Instruments Co.,Ltd.
Test principle: The opening tension of the clip chain refers to the force required to open the ridges and grooves of the clip chain. During the test, the two plastic film parts containing one end of the clip chain sample are clamped into the upper and lower clamps of the equipment, so that the clip chain is in the middle of the two clamps. The upper clamp of the equipment pulls the clip chain open during the upward movement. The force sensor configured in the equipment monitors the force generated during the process of the clip chain being pulled open in real time. After the test, the opening tension of the clip chain is calculated and displayed based on the monitoring value. The upper clamp adopts the soft connection with the machine upper motive part. The whole clamps are designed and produced by Link Testing.
Test sample: The sample tested this time is a transparent ziplock bag. Test process:
Test results and analysis
The average value of the outer opening tension of the ziplock bag samples tested in this test is 2.941 N/50mm, and the average value of the inner opening tension is 6.178 N/50mm.
Opening tension is an important performance of ziplock bags. This article introduces the test method of opening tension by testing the outer opening tension and inner opening tension of transparent ziplock bag samples produced by a certain enterprise. The test process is simple, the equipment is easy to operate, and the test results are highly accurate.
