Source: Link Testing Instruments Co.,Ltd.
In the production and quality inspection stages of industries such as pharmaceuticals, food, and cosmetics, the wall and bottom thickness of packaging containers directly impact product safety, sealing integrity, and stability during transport. For instance, insufficient wall thickness in pharmaceutical glass bottles may lead to product leakage or breakage, while food packaging bottles lacking adequate compressive strength could trigger accidents during transit. Consequently, strictly adhering to national and industry standards for wall thickness inspection is an essential measure for enterprises to ensure product quality and meet regulatory requirements.
Significance of Inspection: Quality Assurance Under Standardized Requirements
China has established numerous standards regarding the wall thickness inspection of bottle-type packaging—such as YBB00332002-2015 *Tubular Glass Vials for Injection* and GB12415-90 *Method for Determination of Vertical Deviation of Glass Bottles*—which explicitly mandate the precise measurement of container thickness using scientific instrumentation. These standards not only regulate production processes but also fundamentally mitigate product risks stemming from packaging defects. For example:

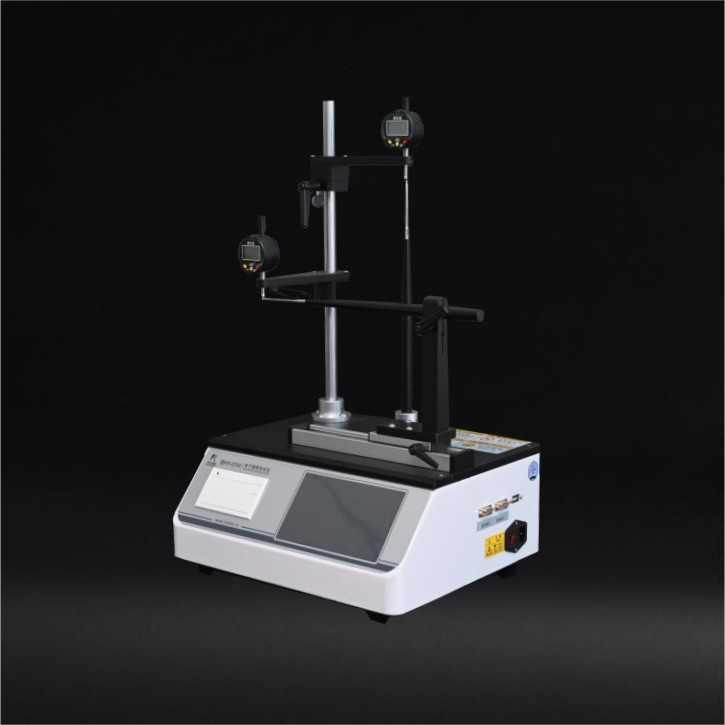

Wall thickness tester CHY-B2(new version)
Pharmaceutical Industry: Insufficient wall thickness in glass bottles may cause ampoules or vials to shatter during sterilization or transport, thereby compromising the stability of the medication;
Food Industry: If beverage or beer bottles possess uneven wall thickness, they are prone to bursting triggered by fluctuations in internal pressure;
Cosmetics Industry: Insufficient bottle body strength may negatively impact the product's aesthetic appeal and the consumer's user experience.
Link Testing CHY-B2 Electronic Wall Thickness Tester: Precise, Efficient, and Compliant
Addressing the aforementioned industry demands, the CHY-B2 Electronic Wall Thickness Tester (manufactured by Link Testing) stands out as the ideal choice for quality inspection centers, manufacturing enterprises, and research institutions, thanks to its high-precision measurement capabilities, intelligent operation, and multifaceted functionality.
Core Advantages
Measurement Range: 0–12.7 mm (standard configuration), 0–25 mm (optional configuration); Resolution: 0.001 mm.
Supports dual-mode testing for both wall thickness and bottom thickness of glass and plastic bottles, meeting the requirements of domestic and international standards such as YBB, GB, and ASTM.
Features a 7-inch industrial-grade touchscreen with a menu-driven interface, allowing for one-touch switching between test modes.
Automatically calculates and displays maximum, minimum, and deviation values; supports data storage, retrieval, and direct output via a connected micro-printer.
Features an adjustable testing space and supports various measurement probe specifications, accommodating samples with diameters ranging from 10 to 230 mm and heights from 10 to 380 mm.
Incorporates a three-tier user permission management system to ensure data security and compliance with GMP regulations.
Equipped with a high-speed processing chip to ensure smooth and responsive operation.
Dimensions: 420 × 280 × 655 mm; Net Weight: 15 kg. Its compact structure makes it suitable for use in both laboratory and production floor environments.
Applicable Fields
The CHY-B2 is widely utilized across various industries—including pharmaceuticals (ampoules, vials), food and beverage (drink bottles, beer bottles), and cosmetics (plastic bottles, spray bottles)—empowering enterprises to achieve standardized control over packaging quality.
Conclusion
In an era where quality reigns supreme, precise wall thickness testing serves not only as the foundation for industry compliance but also as a critical factor in corporate competitiveness. Driven by advanced technology and guided by rigorous standards, the Link Testing CHY-B2 Wall Thickness Tester provides efficient and reliable testing solutions for diverse industries, helping enterprises ensure comprehensive quality assurance across the entire value chain—from production to market.
for more details please visit www.linktesting.org
