Product Application

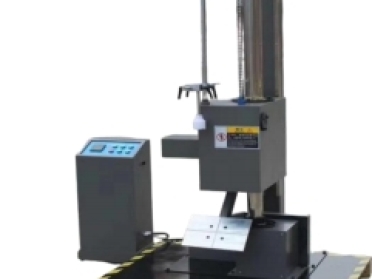

The single-wing drop tester is specifically designed to test the damage to product packaging from drops and to assess its impact resistance during transportation and handling.
Applicable Standards: ISO2248, JISZ0202-87, GB/T4857.5-92
Operation video
Machine Features

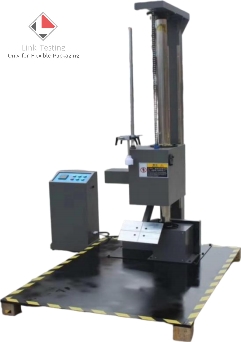

The single-wing drop tester can perform free-fall tests on the faces, corners, and edges of packaging. Equipped with a digital height display and a decoder for height tracking, it accurately provides the product's drop height, with an error of no more than 2% or 10mm from the preset drop height. The machine adopts a single-arm, double-column structure and features electric reset, electric drop control, and electric lifting devices for ease of use. Its unique cushioning device greatly improves the machine's lifespan, stability, and safety. The single-arm design allows for convenient product placement.
Technical Parameters
| Drop Height | 300- 1500mm |
| Max sample weight | 0-80kg |
| Holding plate thickness | 10mm |
| Max sample size | 800 x 800 x 1000mm |
| Height error | Less than 10mm |
| Dimension | 1700 x 1200 x 2315mm |
| Net weight | 250kg |
| Power | 380V 50Hz 1.85KWA |
| Working condition | 5℃~+28℃ ≤85%RH |
| Working condition | 5℃~+28℃ ≤85%RH |
Configuration：
Host; Manual; Cable; Certificate; Charger
